Webbing Laser Cutting Solution
This automatic webbing laser cutting machine is specially developed for elastic bands, nylon webbing, hook‑and‑loop tape, polyester ribbon, safety webbing, jacquard webbing, woven labels and other strip‑shaped materials. Equipped with roll‑feeding system and CO₂ laser cutting technology, it delivers heat‑sealed cutting edges without fraying, thread‑pulling or burrs. It solves typical industry pain points such as yellowing from hot‑knife cutting, frayed edges from blade cutting and inconsistent dimensions. Ideal for mass automated production of garment accessories, luggage parts and outdoor safety webbing.
| Item |
Parameter |
| Laser Type |
CO₂ glass laser tube |
| Laser Wavelength |
10600 nm |
| Laser Power |
100W/120W/150W/180W optional |
| Cutting Accuracy |
±0.01 mm |
| Repositioning Accuracy |
±0.005 mm |
| Min. Line Width |
≤0.02 mm |
| Working Width |
400/500/600 mm, customizable |
| Supported File |
DXF, AI, PLT, GERBER |
| Power Supply |
AC220V 50Hz, rated power 1500W |
| Cooling System |
Water cooling | |
| Control System |
|
Key Advantages

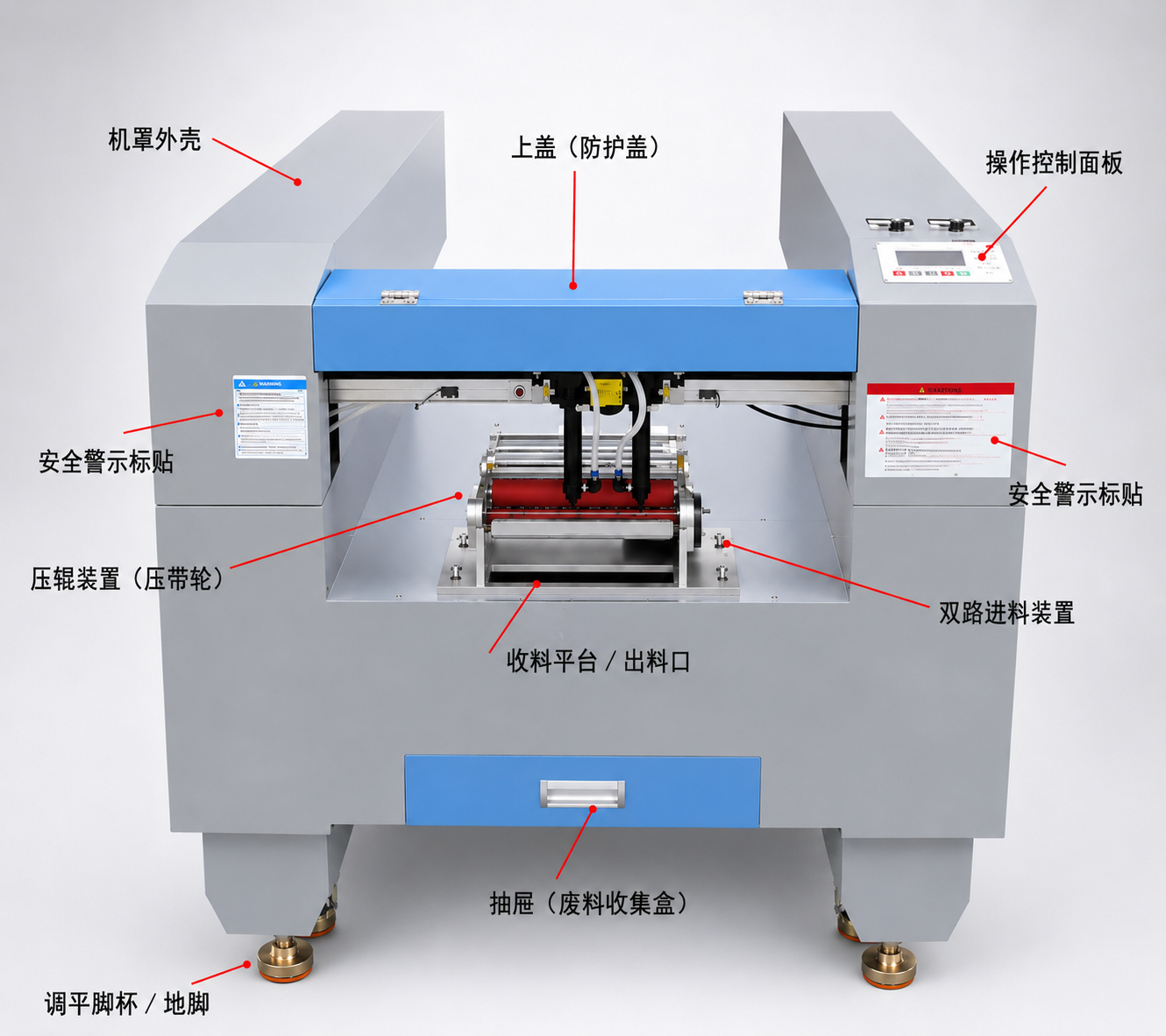

Automatic Roll‑Feeding Mechanism: Standard single/dual unwinding rollers with elastic pressure rollers ensure stable feeding without slipping or offset. Feeding length is set via software for millimeter‑accurate fixed‑length cutting.
CO₂ Thermal Fusion Cutting: Infrared laser instantly heat‑seals cutting edges. Nylon, polyester and chemical‑fiber webbing need no secondary edge‑locking after cutting.
Automatic Output & Collecting Platform: Finished parts output automatically after cutting. Optional re‑wind reel for neat stacking or roll‑up. Suitable for both sample making and mass‑volume orders.
Wide Material Compatibility: Process nylon, polyester, PP webbing, elastic tape, hook‑and‑loop, woven labels, backpack straps, safety belts and other synthetic fiber strips.
Applicable Materials
Synthetic‑fiber webbing: polyester, nylon, PP webbing, satin ribbon, elastic tape, hook‑and‑loop tape, woven labels, jacquard webbing, reflective / luminous webbing, safety belt, decorative gift ribbon.
Thin composite strips: adhesive‑back webbing, foam webbing, non‑woven narrow strip, thin EVA strip, composite chemical‑fiber adhesive strip.
Application Industries
‑ Garment & underwear accessories: elastic tape, rubber band, woven labels, care labels, home‑textile decorative ribbon
‑ Luggage & outdoor goods: backpack webbing, lashing strap, climbing safety belt, pet leash, tent binding tape
‑ Footwear industry: shoe elastic strap, upper decorative webbing, shoe label, reflective safety webbing, sandal strap
‑ Gift & craft industry: gift‑box ribbon, wedding bow ribbon, festival printed webbing
‑ Electronic accessories: hook‑and‑loop cable tie, wire harness fixing tape, insulating narrow webbing
